Side Bow Chain

Side bow chain is able to go side flex and commonly used in conveying system requiring curve going. Available in carbon steel and stainless steel.

Category: Specialty Chain

| About Side Bow Chain

Side bow chain have similar dimensions of standard chain but has been designed to be able to go side flex.

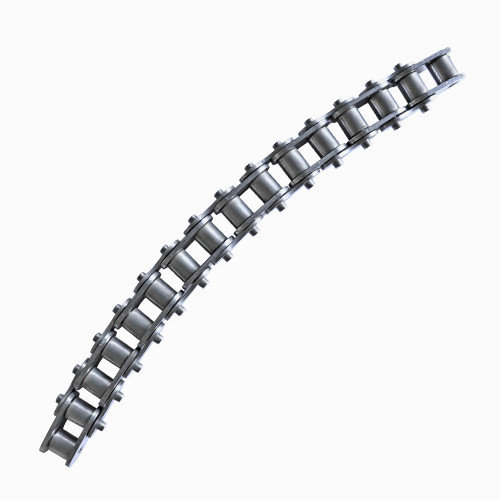

Except normal side bow chains, we also have 63SB chain with special extended pins on both sides to hold plastic flights or snap as a side-flexing table chain.

The chain is used when conveying system requires curve going, such as baggage carousel in airport or vertical spiral conveyor in intra logistics.

It can be used with standard sprockets and available in carbon steel and stainless steel.

We also have various corrosion resistant coatings for carbon steel to increase working life in corrosive environment.


| Features

  • Designed to be able to go side flex.
  • Heat treatment for improved hardness and strength
  • Shot peening for improved fatigue strength
  • Solid bushing and roller for carbon steel chain
  • Corrosion resistant coatings available
  • Matched and tagged available
  • Work with standard sprockets
  • Custom design available


Side Bow Chain Dimensions (PDF)

Chain No.

Pitch inch

Pitch mm
Chain No.

Pitch inch

Pitch mm
35SB3/8"9.525603SB3/4"
19.05
40SB1/2"
12.7060SB3/4"
19.05
40NSB1/2"
12.70
08BSB1/2"
12.70
50SB5/8"
15.87550SBSS5/8"
15.875
08BSBSS1/2"
12.70
63SB3/4"
19.05
63SBSS3/4"
19.05



Please refer to above PDF file for detailed dimensions.
