Ensuring the quality of roller chains is essential for reliable performance and long service life. At MAXTOP, every chain goes through a series of inspections and tests to confirm that it meets international standards. Below are the most important roller chain tests, explained with their purposes and benefits.
1. Push-Out Force Test for Roller Chains
- Purpose: Checks the tightness between the outer plate and pin, and the inner plate and bush.
- Why It Matters: If the push-out force is insufficient, pins may separate from outer plates or bushes may detach from inner plates, leading to chain failure.
Extended Reading: Push-Out Force

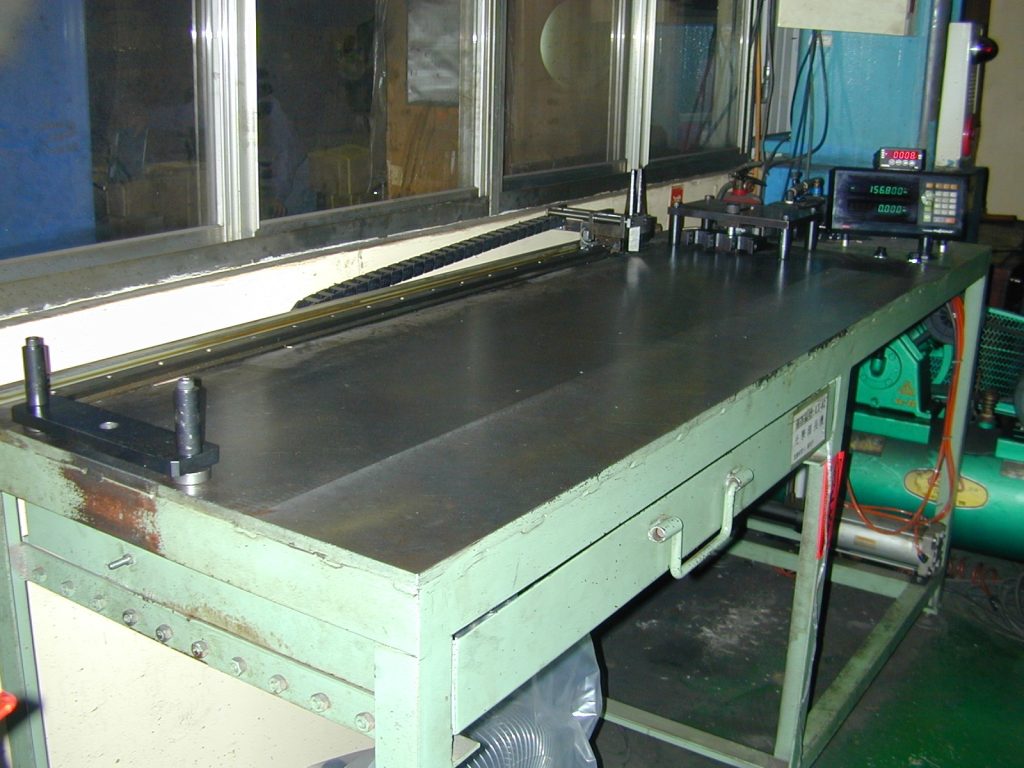

2. Chain Length Measurement
- Purpose: Ensures the pitch of the chain after assembly remains within standard tolerance.
- Key Points:
- Incorrect length can prevent proper sprocket engagement or cause operational noise.
- Example: ANSI 80 pitch should be 25.4 mm, but due to production tolerances, exact precision is impossible. Accumulated tolerances may result in a chain that is too long or too short.
3. Pre-Stretching (Pre-Loading) of Roller Chains
- Process: After assembly, the chain is subjected to an initial load equal to one-third of its breaking load.
- Benefits:
- Makes each component fit more tightly.
- Reduces initial wear during operation.
- Improves fatigue resistance and extends service life.
4. Salt Spray Test for Corrosion Resistance
- Standard: Performed according to ASTM B117.
- Method: A 5% salt solution is sprayed on the chain sample, and rust resistance is measured over time.
- Applications: Used for testing surface-coated chains, stainless steel chains, and anti-rust lubricants.
Extended Reading: Anti-Corrosion Chain Testing Standard – Salt Spray Test

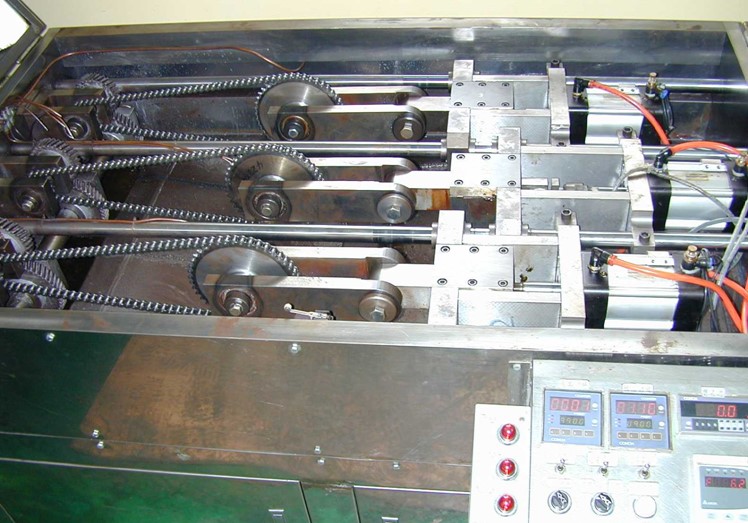

5. Chain Wear Test
- Purpose: Evaluates the wear resistance and durability of roller chains.
- Notes:
- No universal international standard exists, but JCAS (Japan Chain Association) has defined wear test conditions for motorcycle chains.
- MAXTOP’s wear testing machine was designed with reference to JCAS standards.
- Because testing methods vary by manufacturer, results are not directly comparable.
Extended Reading: Wearing Test Method for Roller Chains

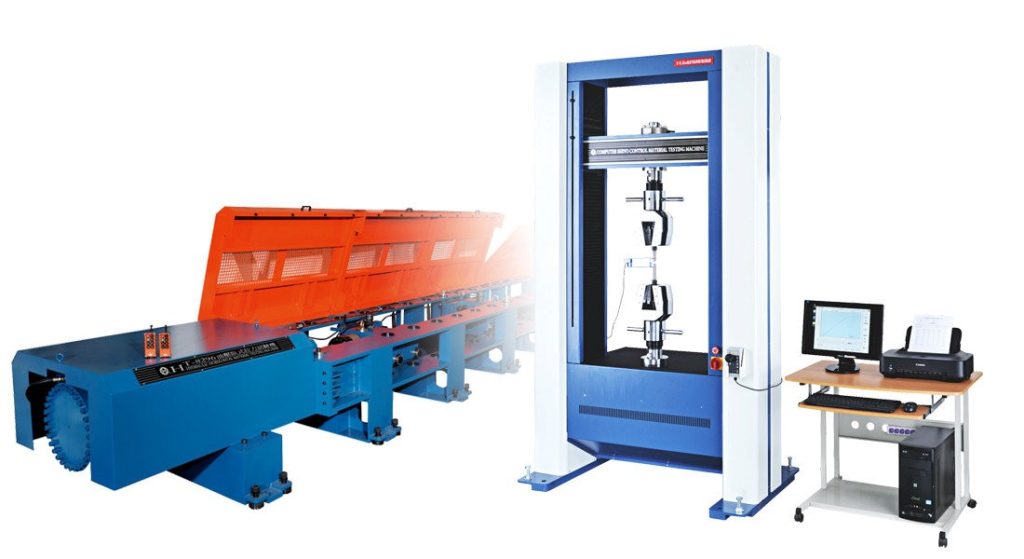

6. Ultimate Strength (Breaking Load / Tensile Strength) Test
- Purpose: Verifies that the ultimate strength of the chain exceeds the minimum set by international standards.
- Importance:
- Low results may indicate poor heat treatment or missing components.
- Chains with insufficient ultimate strength are prone to breakage during use.
Extended Reading: Tensile Test Method for Roller Chains
7. Fatigue Test for Roller Chains
- Purpose: Determines the maximum tensile load under which a chain can operate indefinitely without breaking.
- Why It’s Important:
- Fatigue strength is closely related to real operating conditions and is considered the most important quality indicator.
- Ultimate strength and fatigue strength are related but not identical. High ultimate strength does not always mean high fatigue resistance.
- Since fatigue testing is costly and time-consuming, many manufacturers estimate fatigue strength as one-sixth to one-tenth of the ultimate strength.
Extended Reading: Fatigue Test Method for Roller Chains
Ultimate Strength vs. Fatigue Strength: Key Differences
- Ultimate Strength: A destructive test that forces the chain to fail under stress. Useful as a reference but not the most critical factor.
- Fatigue Strength: Reflects real-world chain performance, making it the most reliable indicator of durability.
Conclusion: Ensuring Roller Chain Quality Through Testing
From push-out force to fatigue testing, each inspection plays a vital role in ensuring the safety, performance, and durability of roller chains. Among these, fatigue testing is the most reliable indicator of long-term quality, while other tests ensure dimensional accuracy, wear resistance, and corrosion protection.
By performing these important chain tests, MAXTOP guarantees consistent quality, helping manufacturers and end users choose reliable roller chains for their applications.
